AXIS Network Video Server Rack Solution

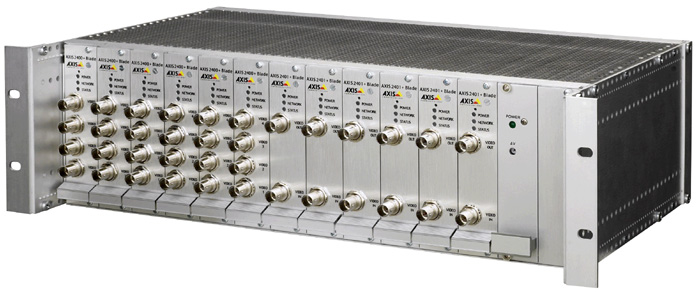

The Axis Video Server Rack Solution consists of a 19-inch Axis Video Server Rack and any combination of Axis 240Q, Axis 241Q, Axis 241S or Axis 243Q Blade Video Servers.

Designed for improved serviceability and the rapid replacement of units, the rack holds up to 12 interchangeable and hot-swappable blades. There is no need to power down when installing or changing blades.

The Axis Video Server Rack provides network, serial communication and Input/Output connectors at the rear of each slot, and a common power supply for the blade video servers.

The Axis Rack Solution combines high reliability and functionality with rapid, flexible and professional installation.

AXIS Network Video Server Rack Solution - Features
•  Rapid and professional installation of different (Axis) video servers in the same rack
•  Expandable, simply add more blade servers
•  Integrated power supply
•  Hot-swappable blade servers
•  High density. Up to 12 blade servers in the same rack (48 channels)
•  Serial communication and Input/Output connectors at the rear of each slot
AXIS Network Video Blade Servers
The Axis 240Q Blade includes all the functional features of the Axis 240Q Video Server.

The Axis 241Q Blade includes all the functional features of the Axis 241Q Video Server.

The Axis 241S Blade includes all the functional features of the Axis 241S Video Server.

AXIS Video Blade Server - Comparison
Blade Model Channels Frame Rate VMD Alarm I/O PTZ Support HTTPS Audio Support
Axis 240Q 4 5/6 Yes 4/4 Yes No No
Axis 241Q 4 100/1201 Yes 4/4 Yes Yes No
Axis 241S 1* 25/30 Yes 4/4 Yes Yes No
VDM = Video Motion Detection
Note 1: Frame Rate = PAL/NTSC
1 100/120 = 4 simultaneous streams at 25/30 frames per second
*Support Y/C Video (SVHS) with BNC/SVHS cable
[Find out more...] Axis Video Server Rack "Technical Data Sheet", 184 kB pdf file.

[Find out more...] Axis 240QS Blade Server "Installation Guide", 855 kB pdf file.

[Find out more...] Axis 241S/241Q Blade Server "Installation Guide", 897 kB pdf file.
