Product Summary
The Raytec VARIO w8 is suitable for light installations up to 150m (492ft).
Related Links
Raytec provides a full range of Infrared, White-Light and Hybrid illuminators for the CCTV Professional. All the illuminators offer high performance, low running costs and low maintenance.
The intensity of illumination due to a given source is inversely proportional to the square of the distance from the source.
Light pollution is a global problem caused by inefficient, intrusive and unnecessary use of artificial light.
Raytec Logo

Raytec VARIO Illuminators

Raytec VARIO Logo
You are Here:- Home >> Products >> Illuminators >> Raytec >> Vario White-Light >> Vario  w8
 w8
Multi-angle White-Light
The VARIO w8 series is part of the Raytec VARIO range of White-Light illuminator designed for CCTV and general area illumination. VARIO illuminators combine the latest advances in optics, remote control, electronic feedback and green technology into an outstanding all-round package.

The unique VARIO beam pattern system is the latest development in interchangeable holographic optics and allows users to precisely match the angle of illumination to the required field of view. VARIO lenses use hot-spot reduction technology (HRT) to produce images far better than those possible with normal LED illuminators. The HRT system delivers a highly diffused elliptical beam shape to deliver light directly to where it is most needed, allowing greater illumination distances, reducing light and energy wastage and preventing the overexposure of foreground objects.

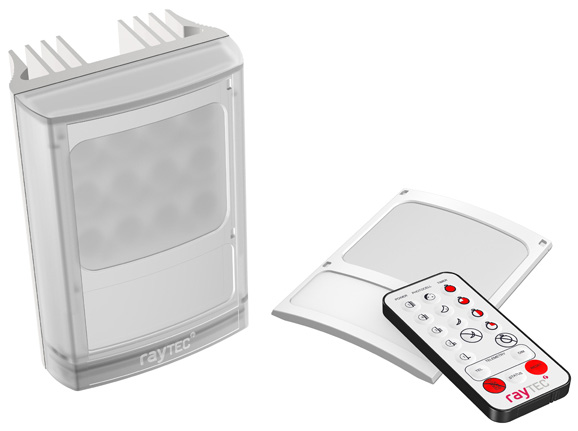

Click to Expand, 48 kb image

An optional VARIO remote control provides the ability to set-up the illuminator quickly, safely and from ground level. Active LED life control ensures high reliability and consistent optical output and all VARIO illuminators are part of the Raytec Green Touch programme, delivering outstanding performance with minimal environmental impact. The VARIO LED status indicator provides instant operational feedback on the status and performance of the illuminator.

A standard VARIO kit includes interchangeable lenses to deliver angles of 10, 35 and 60 degrees out of the box; enough flexibility to cover most applications. Other angles are available on request.

VARIO illuminators are supplied complete with a mounting bracket and operate directly from a 12-24V input.

Interchangeable Lens System
At the heart of VARIO is a holographic lens system that allows the user to change the angle of light by changing the VARIO lens. A wide range of lenses is available to ensure that VARIO illuminators meet the demands of any installation. A standard VARIO illuminator delivers 10 circular, 35x10 and 60x25 elliptical angles out of the box. Other VARIO lenses are available on request.

 w8 - Features

PowerfulFlexible
  • Distances up to 150m (492ft)
  • Platinum LED technology
  • HTR Hot-spot reduction technology
  • VARIO holographic lens system
  • Angles 10 to 120- interchangeable
  • Optional VARIO remote control interface
ReliableControlled
  • LED status indicator
  • Active LED light control
  • Vandal Resistant
  • Excellent Colour Redition
  • Command and Control Technology
  • Elliptical beam angles for optimal light distribution
All Raytec VARIO LED illuminators are provided with a 5 Year Warranty Raytec VARIO Warranty

[Find out more...] VARIO w8 "Technical Data Sheet", 1.091 MB pdf file.

To view the .pdf file, you will need the free Adobe® Acrobat® Reader or plug-in. If you do not have Acrobat Reader, please select the "Get Acrobat Reader" icon for further instructions.

Request Information:

Email E-mail

 w8 - Order Details
OmegaCubed.net does not sell on-line. Orders (See Order Options for Details) can be placed by fax, email or telephone:

0121 243 3163

OmegaCubed.net is registered and assured with The SafeBuy Consumer Code of Practice to protect your purchase.

Part Code Description Angle Distance
VAR-w8-1 VARIO w8 with 3 angle options included 10 x 10 150m (492ft) at 10
  12-24V 35 x 10 80m (262ft) at 30
    60 x 25 45m (148ft) at 60
Optional Parts Description
VAR-rc Remote control for any VARIO illuminator (one only needed)
VAR-w8-LENS-8030 Individual i2 VARIO lens 80H x 30V
VAR-w8-LENS-12050 Individual i2 VARIO lens 120H x 50V
