Product Summary
The Raymax 300 is suitable for all low light installations up to 370m (1,214ft).

Raymax Distance Calculator (metres), 110kB PDF

Raymax Distance Calculator (feet), 110kB PDF

Product Selector
You are Here:- Home >> Products >> Illuminators >> Raytec >> Raymax >> Raymax 300 >> Specifications
- Specifications

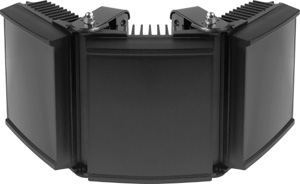

The Raymax 300 provides long life and ultra low maintenance. The Raymax 300 incorporates the very latest surface mount LED’s to deliver excellent nighttime pictures with improved optical output and outstanding reliability.

Raymax illuminators are supplied with a mounting bracket and a Standard Power supply. The Raymax 300 is suitable for all low light installations up to 370m (1,214ft).

- Illuminator Specifications
Wavelength 850nm or 950nm
Maximum Distance Up to 370m (1,214ft)
Beam angle 10° to 180°+
Optics SMT LED's
Temperature Range -50° C (-58° F) to 50° C (122° F)
Supply Voltage 13.5V, current controlled
Power consumption 120W maximum
Ingress protection rating IP66
Colour Black
Dimensions 420mm x 195mm x 66mm (16" x 8" x 3", approximately)
Weight 6kg (13.2lbs)
- PSU Specifications
Input Universal 100-240V AC auto sensing
Output 120W maximum
Temperature Range -50° C (-58° F) to 50° C (122° F)
Dimensions 240mm x 160mm x 81mm (9" x 6" x 3", approximately)
Weight 2.4kg (5.28lbs)
All Raymax Illuminators are supplied with a current controlled Standard Power Supply, with power adjustment fro 0-100%, an externally rated photocell with sensitivity adjustment and a telemetry input to allow the unit to be controlled by an external trigger.

Premium , Pulsed and Low Voltage Power Supplies are available as optional accessories.

Request Information:

Email E-mail

[Find out more...] Raymax 300 "Technical Data Sheet", 358 kB pdf file.

To view the .pdf file, you will need the free Adobe® Acrobat® Reader or plug-in. If you do not have Acrobat Reader, please select the "Get Acrobat Reader" icon for further instructions.

- Achievable Distance
Click to Expand, 217 kB image
See also

Raymax Infrared Illuminators Achievable Distance - Tabular

Raymax Infrared Illuminators Achievable Distance - Graphical
